CLASSIC WORKS – patterns for Armide hull and deck fittings June 2017
CLASSIC WORKS – patterns for Armide hull and deck fittings
Photos
-

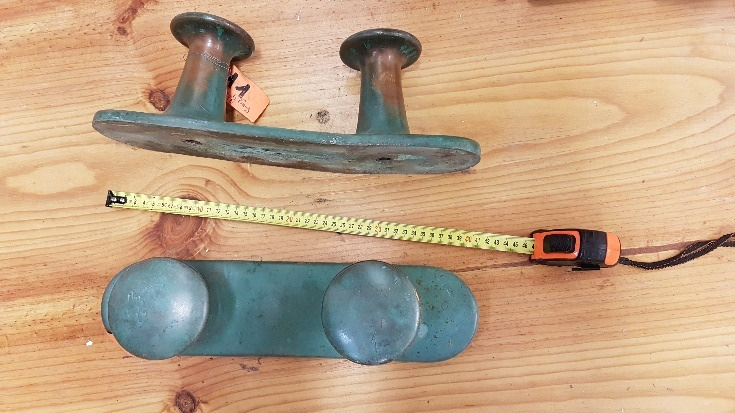

![]( "10-01")
bollards
-
![]( "10-02")

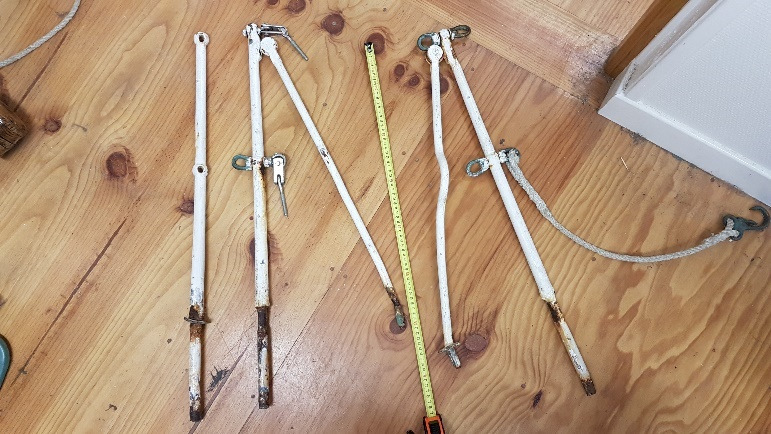

Stanchions off boat
-
![]( "10-05")

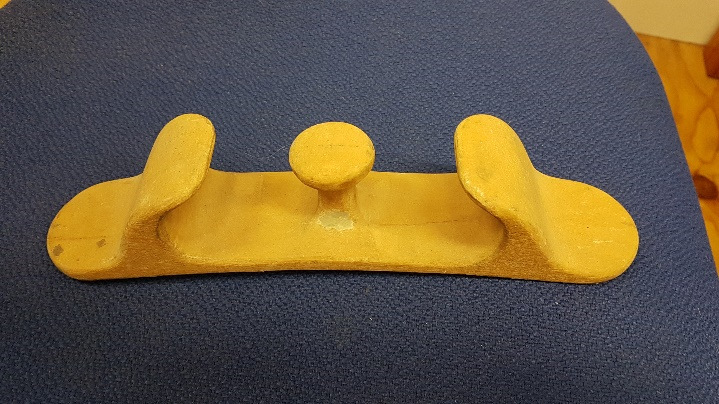

Pattern for above fairlead. The pattern for Armide will be longer (approx. 400mm) than this example (250mm).
-

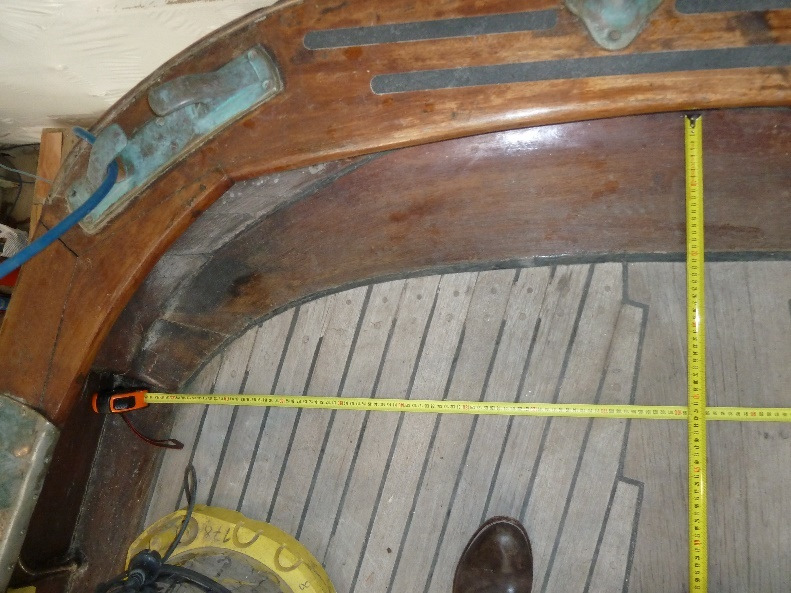

![]( "10-04")

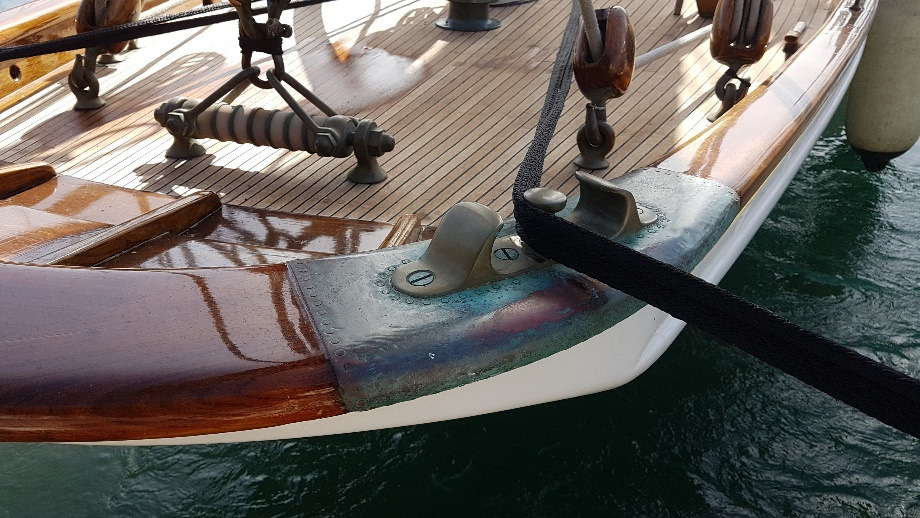

Typical example of stern fairlead
-
![]( "10-06")
Existing fairlead without enough curvature
-
![]( "10-03")

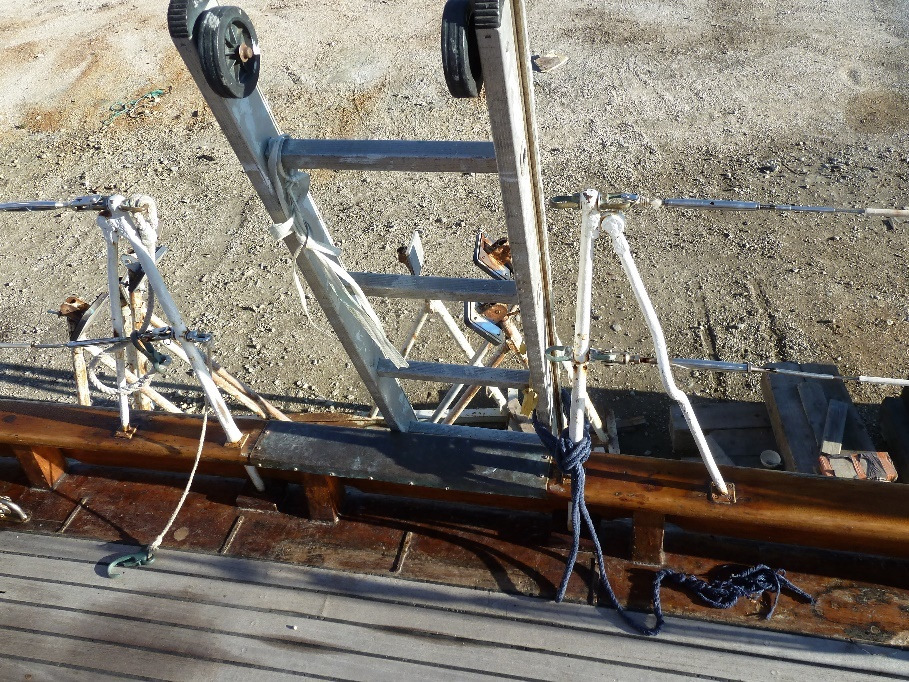

Stanchions at opening section showing stanchion with curved middle section
-

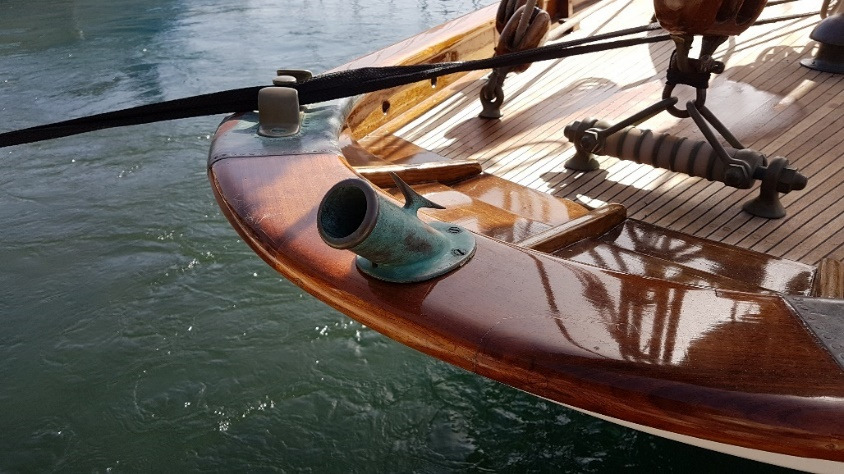

![]( "10-07")

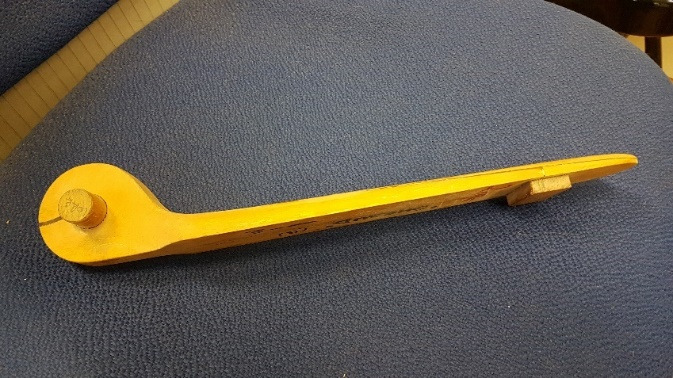

Angled flag staff holder
-

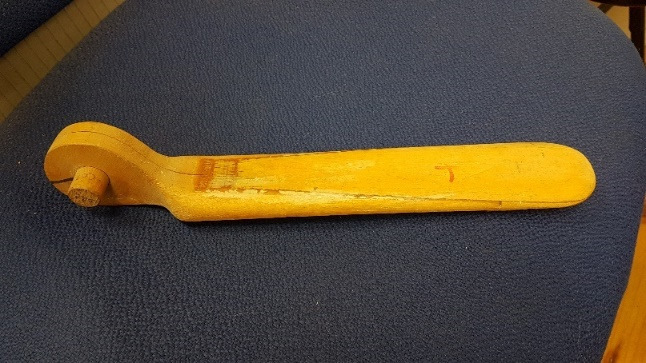

![]( "10-09")
pattern bowsprit whisker shrouds
-
![]( "10-10")
pattern bowsprit whisker shrouds
-

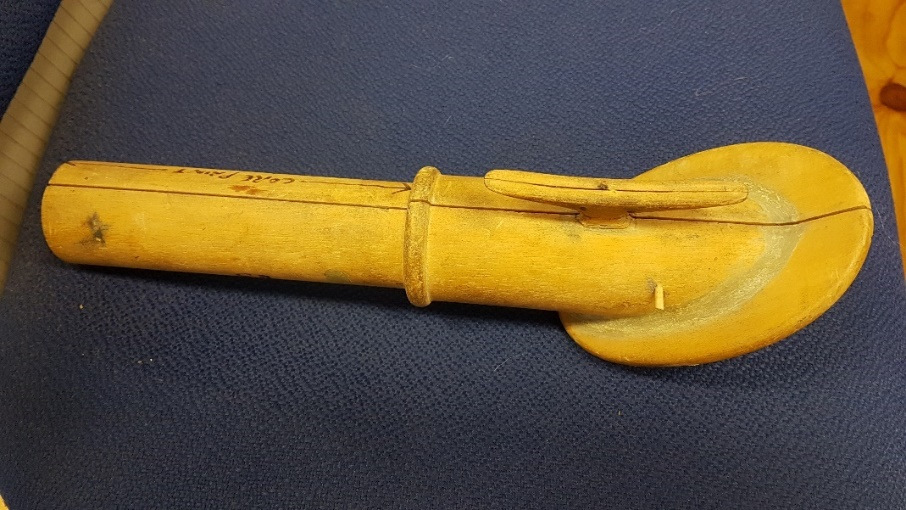

![]( "10-08")
cast from pattern
-
![]( "10-11")

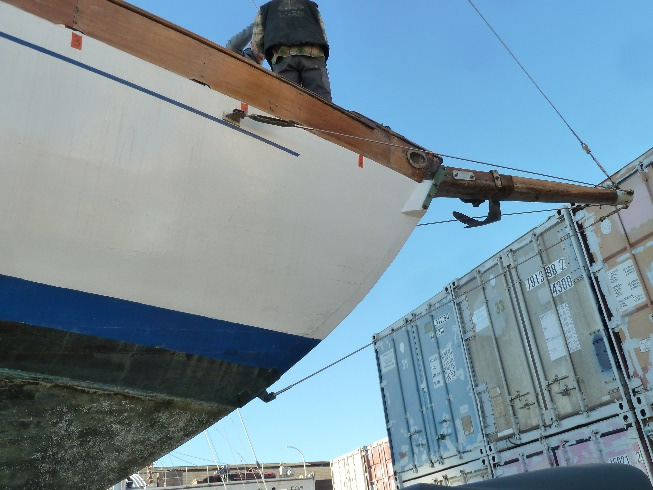

bobstay fitting
-

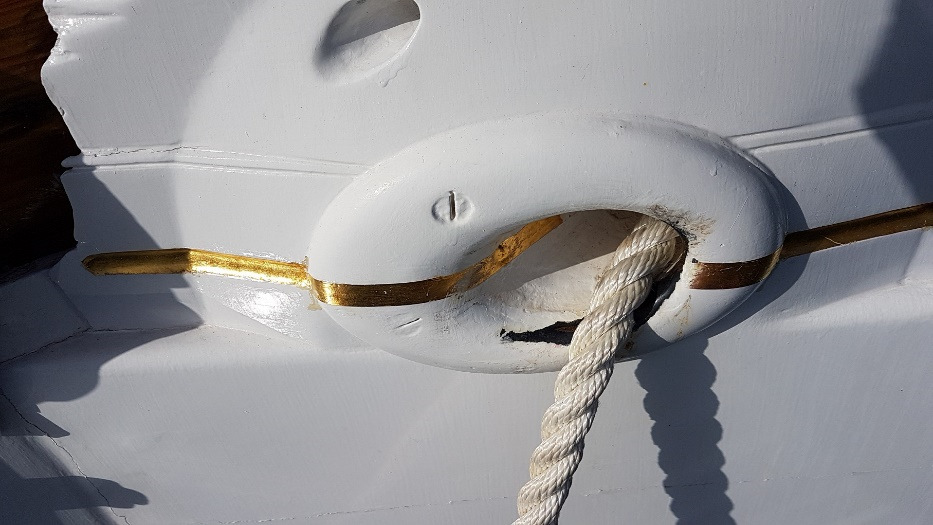

![]( "10-13")

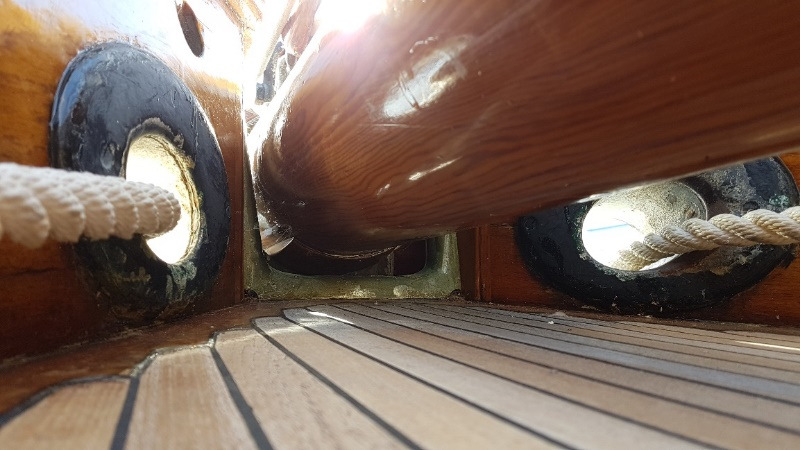

hawse pipe fittings
-
![]( "10-15")
bronze bracket
-
![]( "10-16")

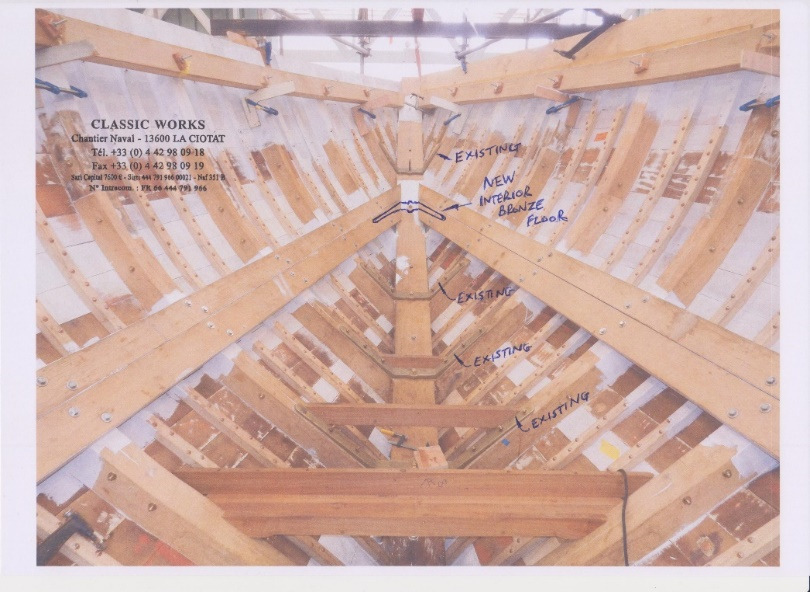

final forward floor pattern
-

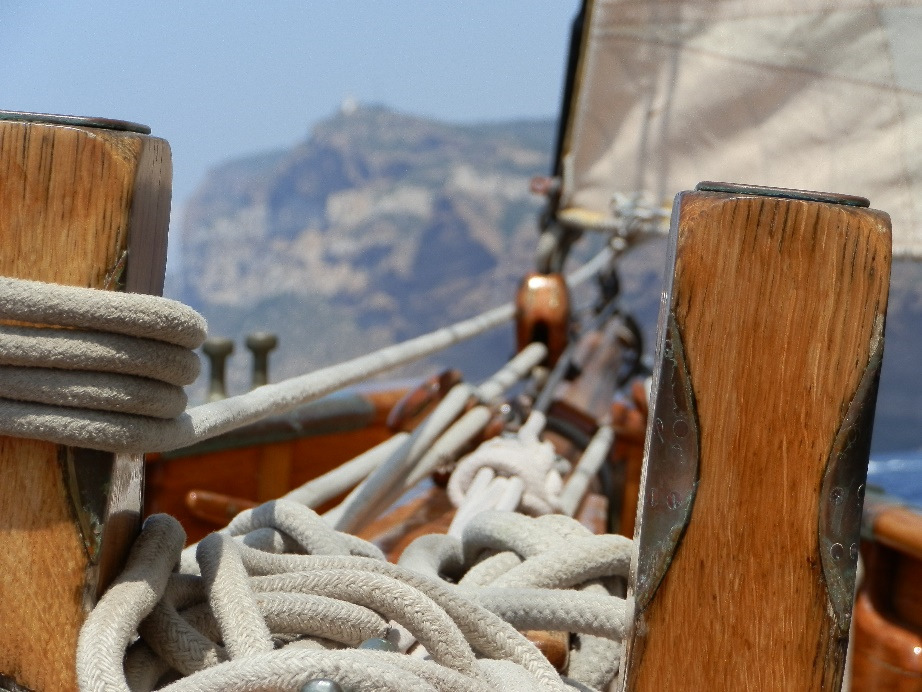

![]( "10-14")
anti-chafe castings
-
![]( "10-17")

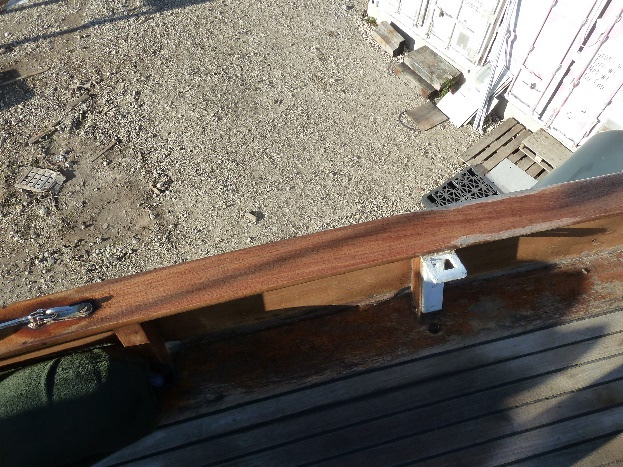

anchor cathead fittings on the bulwark rail
-

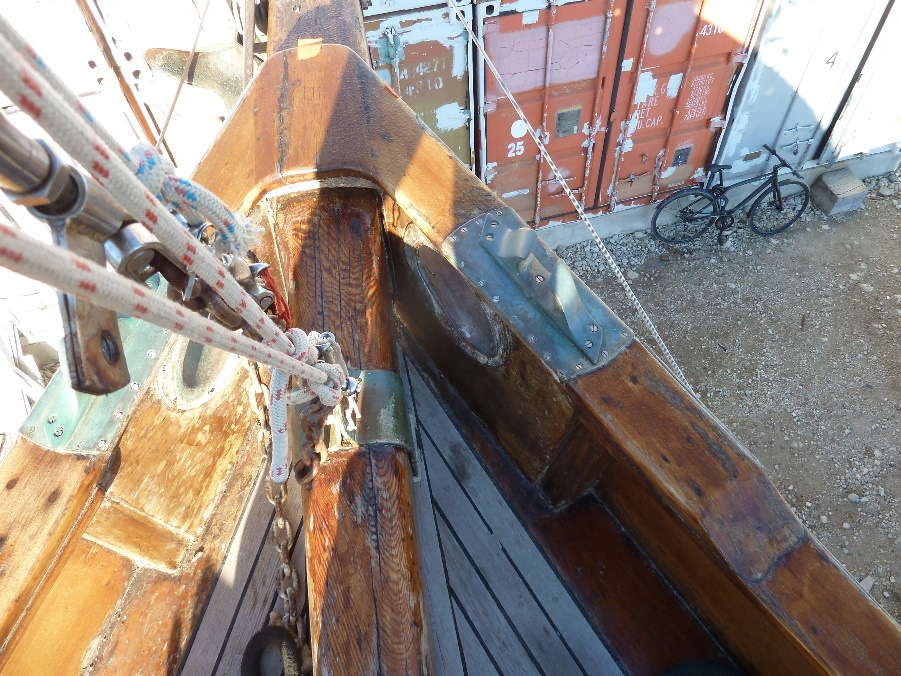

![]( "10-12")
inner forestay
