Armide works photo report April 2017

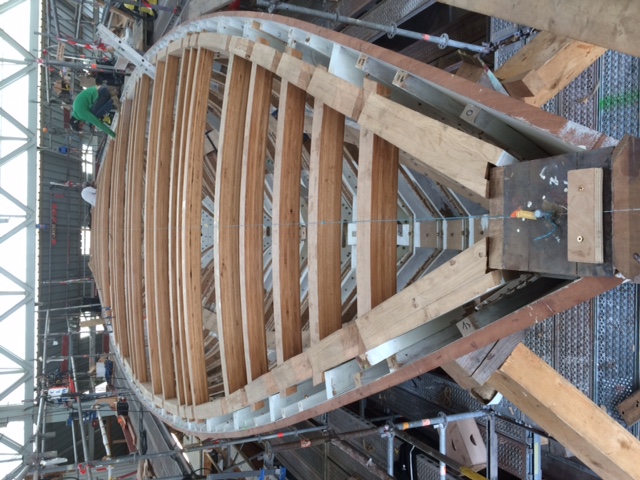

Bronze plate floors installed

Bronze plate floor aft at deep section of the hull

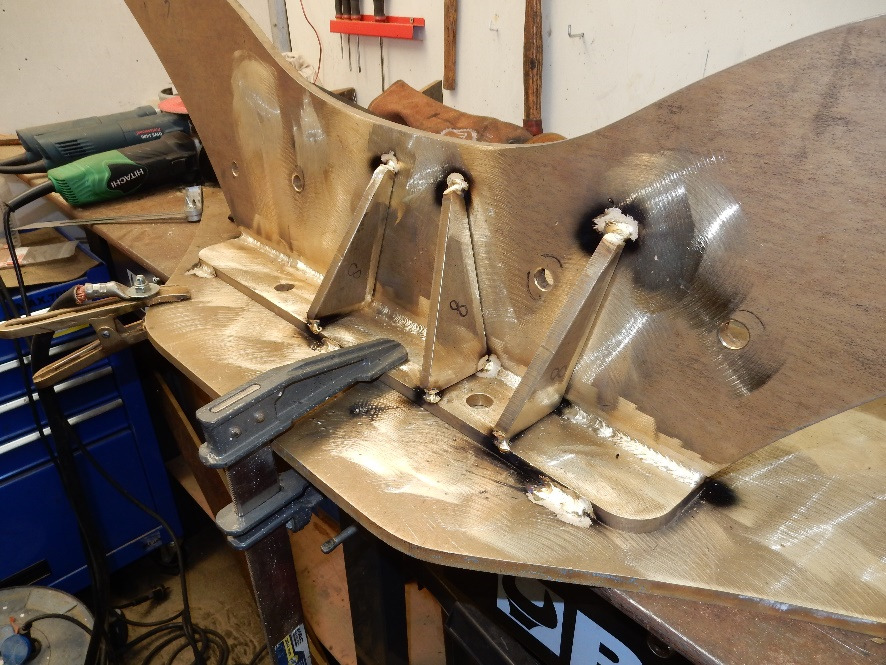

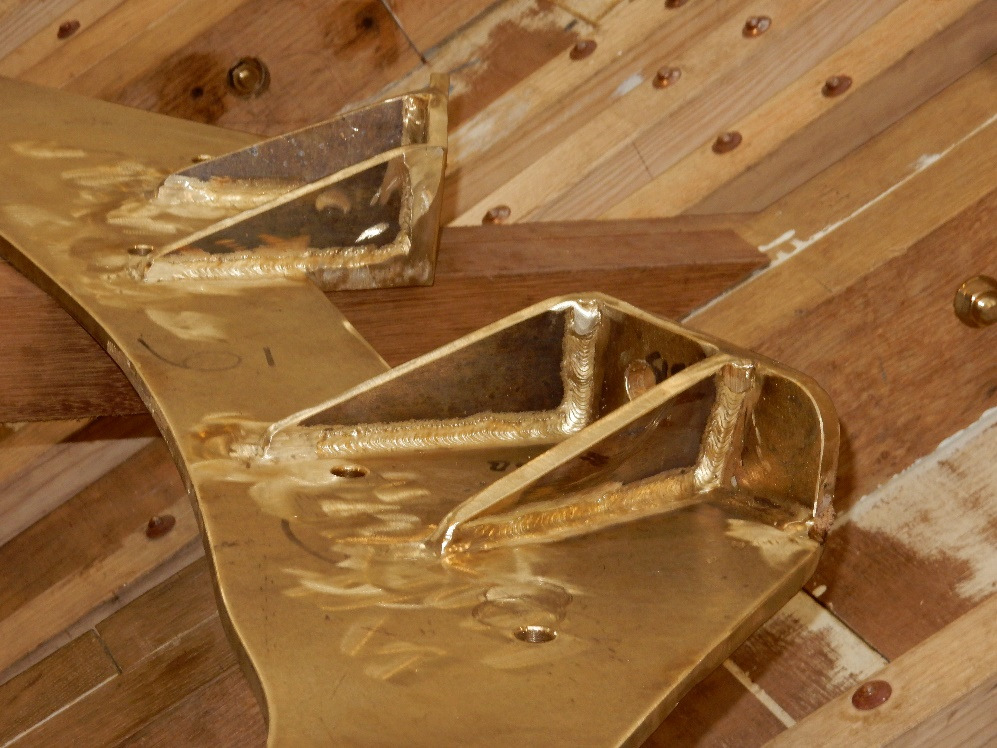

Welded bronze plate floor prior to installation

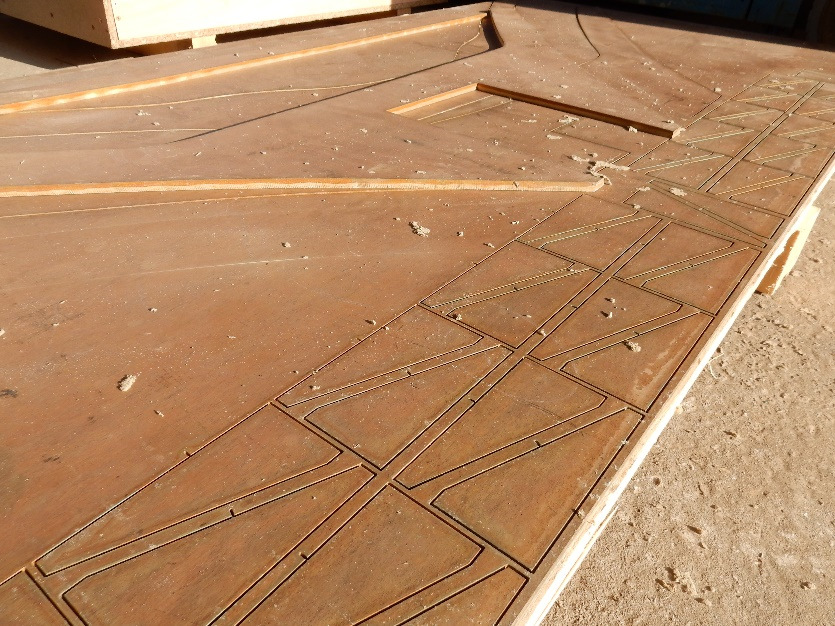

10mm bronze plate cut out by water jet for plate floors

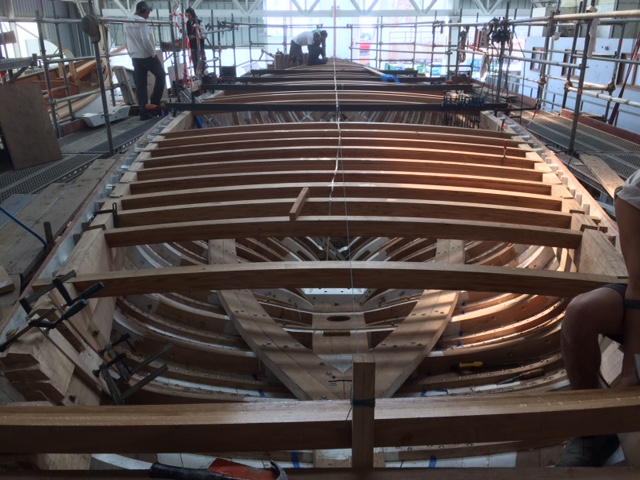

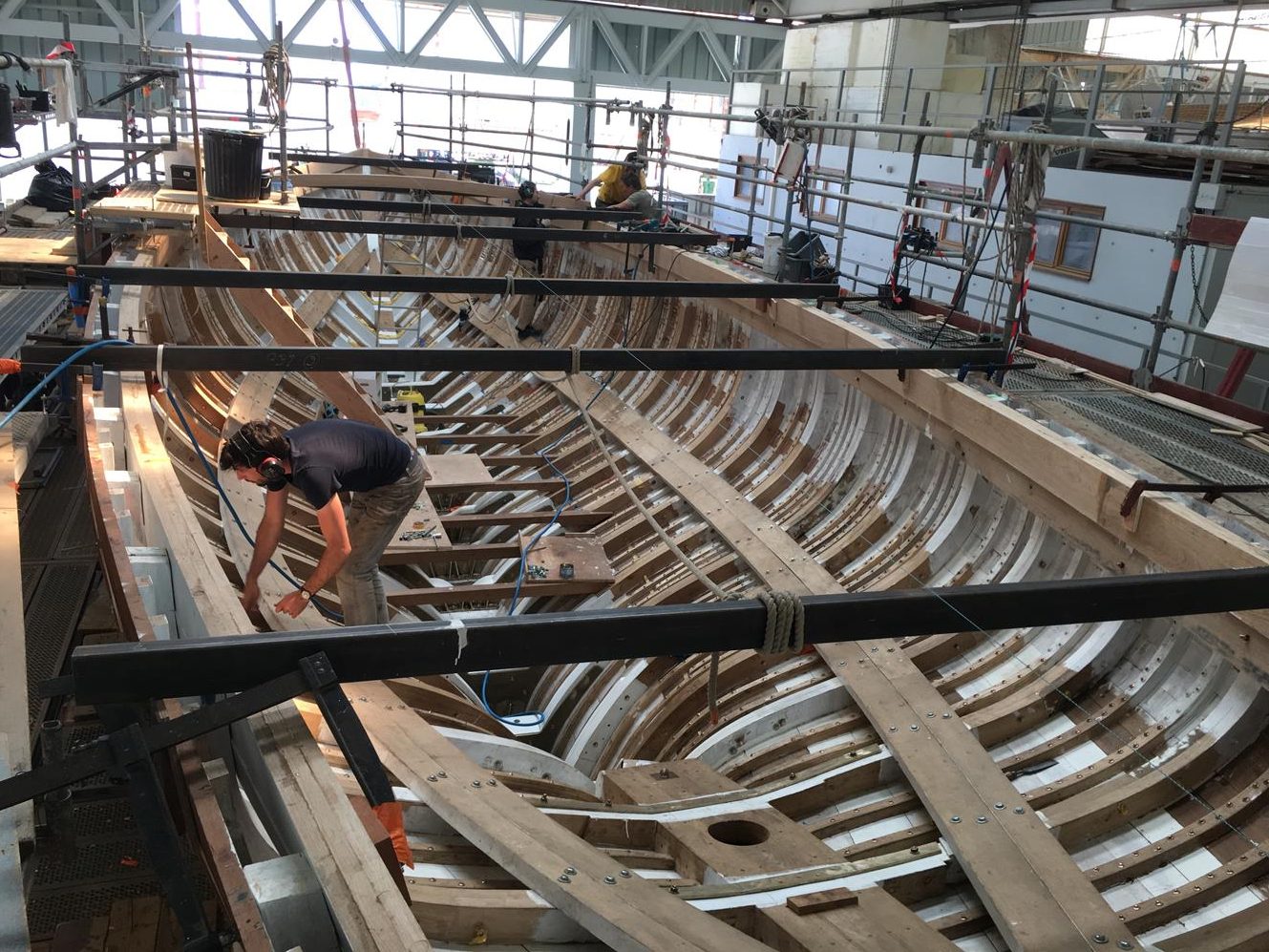

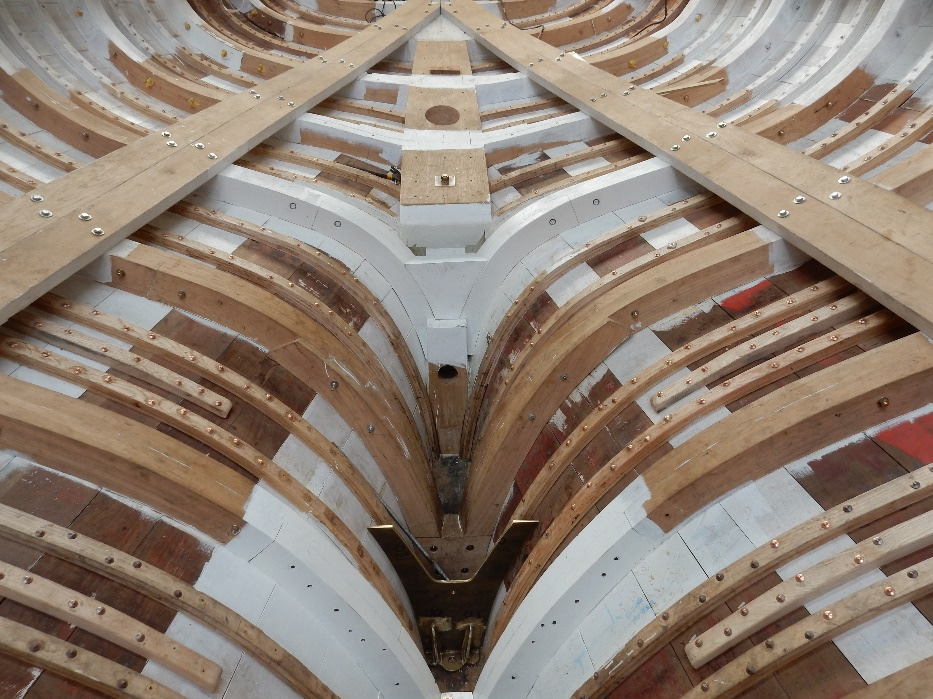

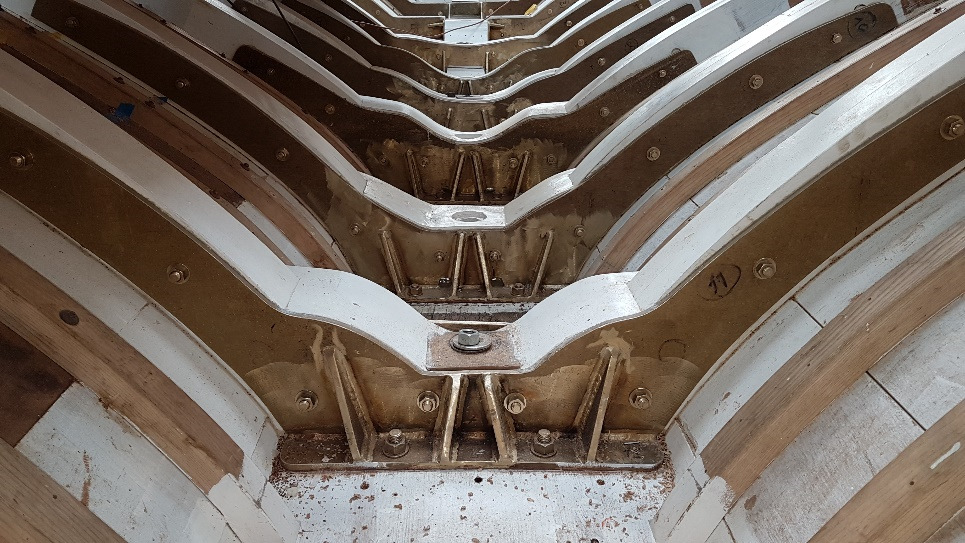

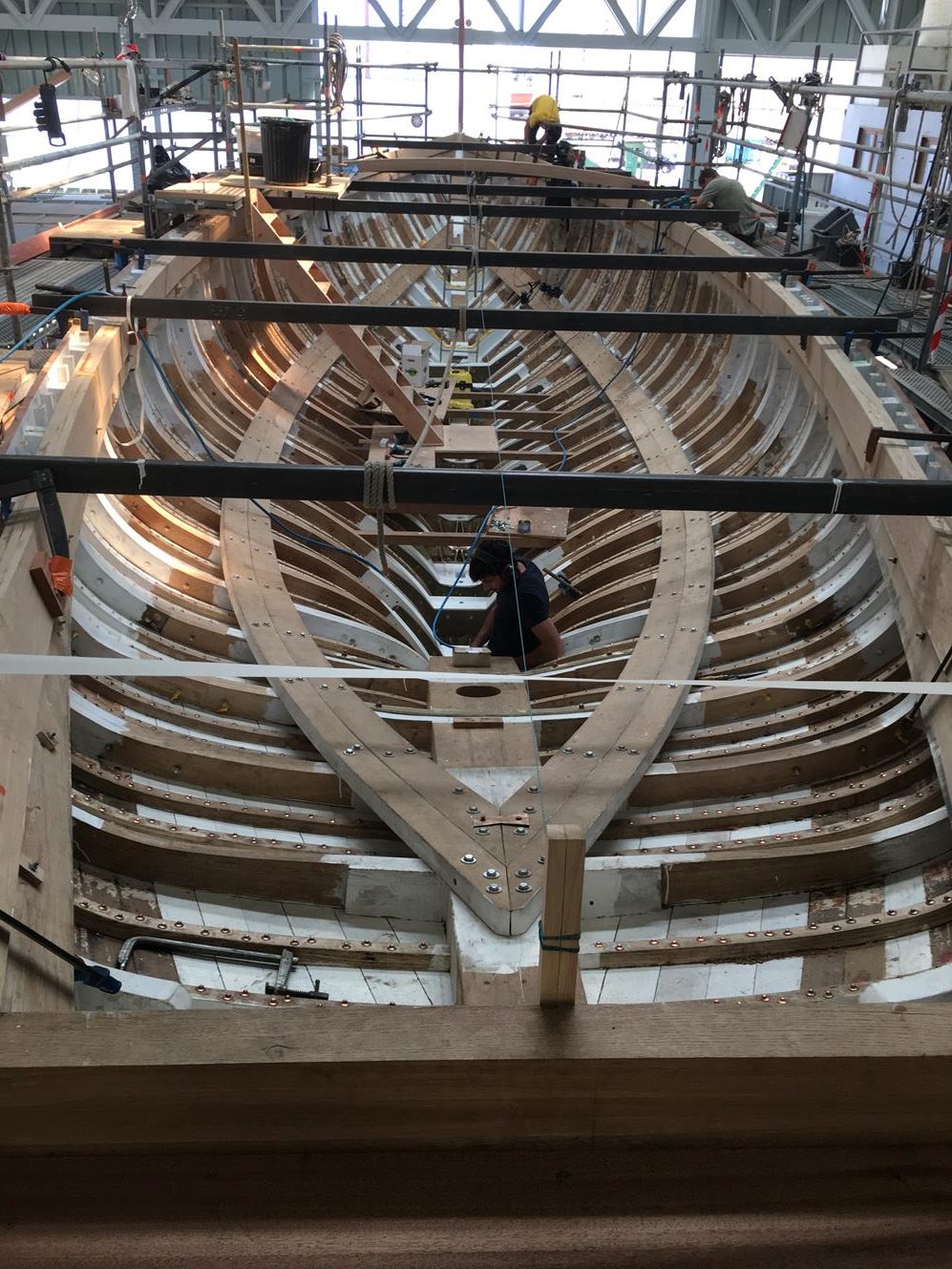

Bronze plate floors installed

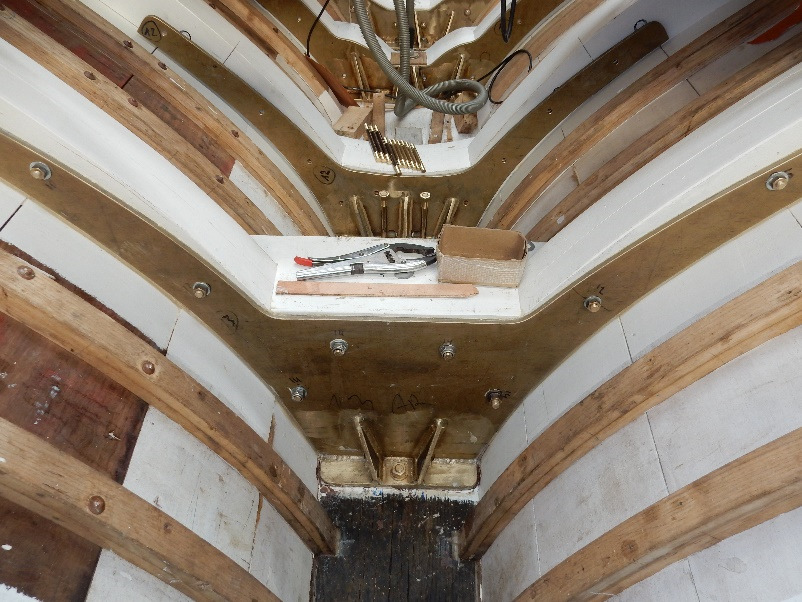

Bronze plate floors and bolts in aft section of hull

10mm bronze backing plate to spread load from floor bolts

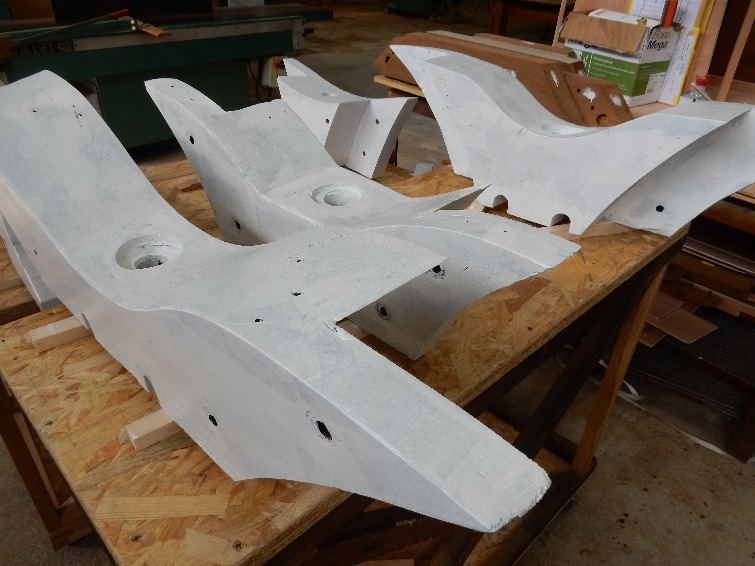

Original wooden floors repaired and painted prior to final installation

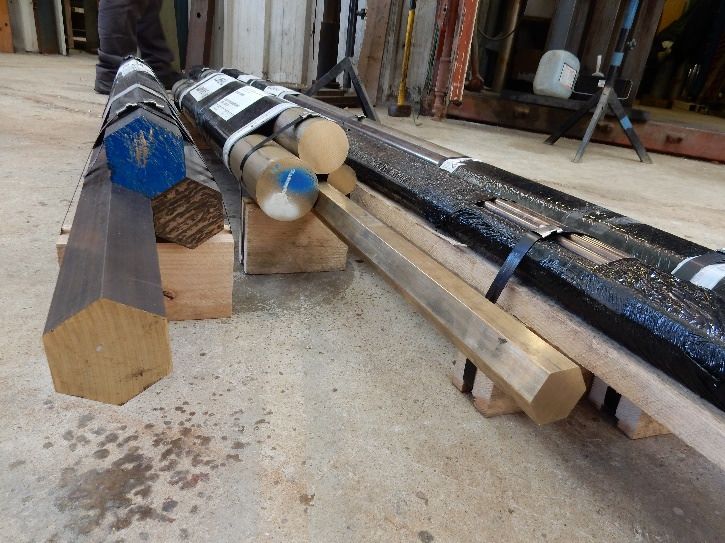

Bronze hexagonal and round bar for keel and other bolts

Bronze plate assembled and in process of being welded

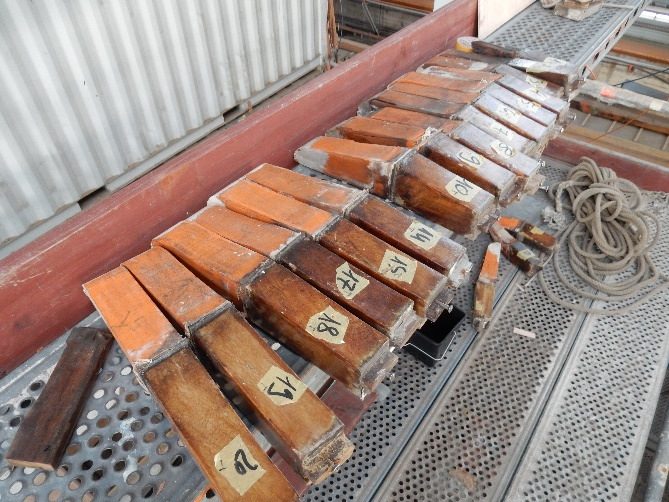

Old wooden stanchions during templating phase for all new oak stanchions
